IP68 335 Watt Monocrystalline Solar Panel For Roof Solar Power Systems Full Black

Brand Name : Finergy Tech

Model Number : 335W full black mono PERC PV module

Certification : CE, IEC61215, IEC61730, TUV, CEC

Place of Origin : CHINA

MOQ : 100PCS

Price : 0.22~0.25 per watt

Payment Terms : T/T, L/C

Supply Ability : 10MW per month

Delivery Time : 10 work days

Packaging Details : Standard Plywood Packing

Cell Source : Suntech, URECO, DMEGC, TW Solar

Material : Aluminum frames and back sheet with uniform black color

Technology : Standard 60 cells design with gallium doped wafers

Application : Residential, commercial and industrial

Special Service : OEM and ODM are both acceptable

Warranty : 12 years + 25 years

Contact Now

FSM325~FSM335M60L (325W/330W/335W) Full/All Black MONO PERC PV Module

KEY FEATURES

  • Uniform Pure Black Color MONO PERC Solar Cell with black back-sheet and frames meet better with house roof tiles.
  • Mono Solar Cell adopts PERC technology to guarantee higher output power and higher module efficiency.
  • Excellent Anti-PID performance guarantee limited power degradation for mass production.
  • Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
  • Certified to withstand: wind load (2400 Pa) and snow load (5400Pa)
  • High salt mist and ammonia resistance certified by TUV
  • Three channels of EL automatic detections and power test before packing
  • 12 years product warranty and 25 years linear power warranty

Electrical Characteristics under STC

Module Type FSM325M60L FSM330M60L FSM335M60L
Maximum Power-Pmax (Wp) 325 330 335
Voltage at Maximum Power-Vmp (V) 33.6 33.8 34.0
Current at Maximum Power-Imp (A) 9.68 9.77 9.87
Open Circuit Voltage-Voc (V) 41.1 41.3 41.5
Short Circuit Voltage-Isc (A) 10.20 10.31 10.36
Module Efficiency-ηm (%) 19.5% 19.8% 20.1%
Operating Temperature -40℃ to +85℃
Maximum System Voltage 1000V/1500V DC (IEC)
Power Tolerance 0~+4.99W
Temperature Coefficients of Pmax -0.40%/℃
Temperature Coefficients of Voc -0.31%/℃
Temperature Coefficients of Isc 0.04%/℃

Mechanical Characteristics

Cell Type MONO PERC 158.75×158.75mm
No. of Cells 60 (6×10)
Dimension 1665×1002×35mm
Weight 18 Kg
Junction Box IP68, 3*20A diodes
Output Cables 4.0mm², 1100mm Length
Connectors MC4 compatible
Packing 31PCS/Pallet, 924PCS/40’HC

Advantage of Finergy Solar Tech

  1. Cost Control

Finergy is in-depth study of intelligent manufacturing. We combined international advanced automation facilities and production lines together with ERP, MES, WMS and CRM information systems. We will actively explore and practice the integration of the two to build a smart factory. In the processes of promotion, we will improve the process capacity, reduce the number of products in process, improve the production efficiency; improve the rate of good products, reduce the quality cost; save the labor cost, eliminate the waste and reduce the comprehensive cost.

  1. Quality Control

Quality is the life of Finergy. The company established a perfect quality control system and implements the whole process quality control of raw materials, production, inspection, warehousing, delivery and etc. Through advanced automatic equipment and production line, it’s able to eliminate human defects and improve products quality. Through digital information systems, we can achieve products quality traceability, provide customers with efficient and quick after-sales service to protect the benefits of customers.

Projects with Finergy Full Black Solar Panels

IP68 335 Watt Monocrystalline Solar Panel For Roof Solar Power Systems Full Black

IP68 335 Watt Monocrystalline Solar Panel For Roof Solar Power Systems Full Black

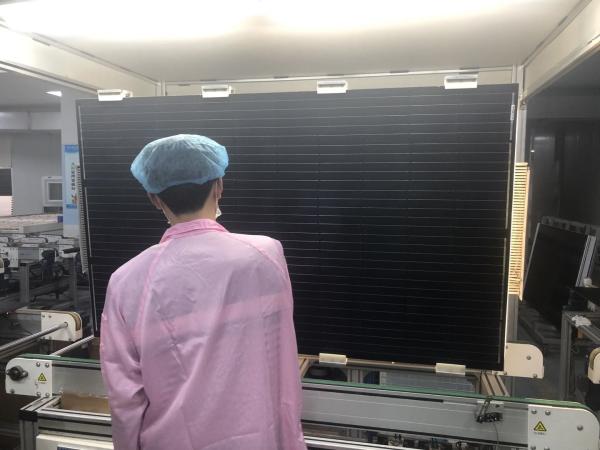

QC Inspections
